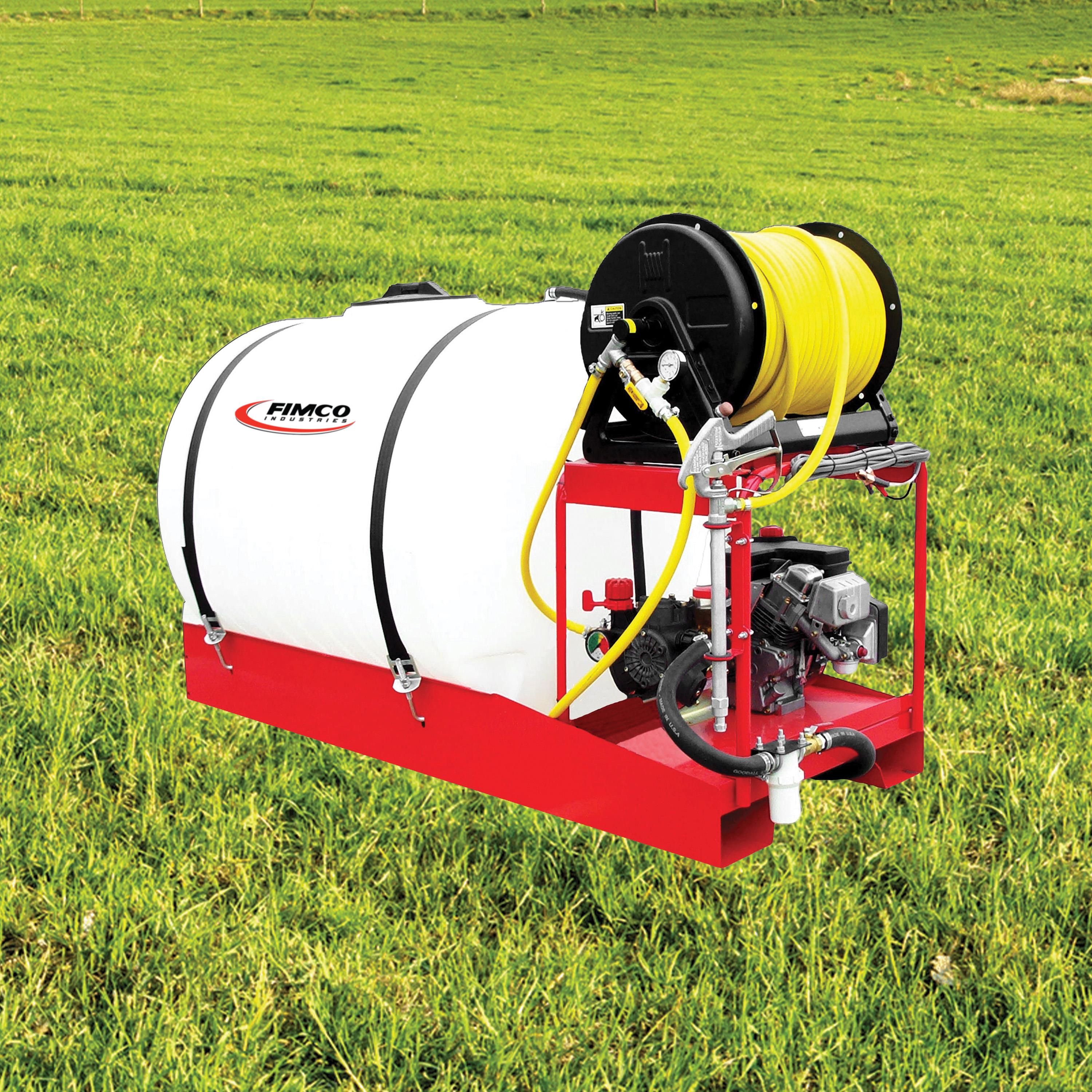

FIMCO 200 Gallon Skid Sprayer Gas Powered Diaphragm Pump

  • Item #: 5301259
  • Mfg #: LSS-240
  • $4,199.99

Product Description

The FIMCO 200 Gallon Skid Sprayer with Gas Powered Diaphragm Pump delivers superior liquid application in a truly universal platform. The UV resistant, molded polymer tank has a 8 inch tethered lid for easy access and is completely drainable. This model features a Power Pro 196cc Gas Engine with a Hypro 3 Diaphragm Pump. The 22" Pro Series Handgun distributes up to 49 feet horizontal spray, 37 feet of vertical spray and comes with 300 feet of ½ inch 600 PSI PVC hose with a hand rewind hose reel. This Skid Sprayer is built on a welded powder coated steel chassis and is capable of being mounted directly on a flatbed trailer, pickup bed or can be palletized and is a high performance mid-level sprayer.


 Product Manual


Product Features

  • 196cc Power Pro Recoil start gas engine delivers consistent power
  • Durable 200 Gallon roto molded tank features UV stabilizers and sump for increased drainage and 8 inch lid for easy filling
  • Hypro 3 diaphragm pump delivers high pressure at 580 max PSI or high flow rate at 9.9 GPM
  • Laser cut and welded steel frame is powder coated to resist corrosion
  • The 22" Pro Series Handgun delivers 49 feet of horizontal spray and 33 feet of vertical spray and the 37 feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles. Combined with an electric rewind hose reel and 300 feet of 600 PSI PVC hose

Product Specs

  • Manufacturers Warranty1 yr Consumer / 90 day Commercial
  • Tank Size (Gal)200
  • Flow (GPM)10.6
  • Pressure (PSI)580
  • Spray Gun TypeHeavy Duty Aluminum Pistol Grip Handgun
  • Spray PatternAdjustable Pattern Tip
  • Pump TypeHypro 3 Diaphragm Pump
  • Spray Height (ft.)37
  • Horizontal Spray Distance (ft.)49
  • Power SupplyGas
  • Hose (in. x ft.)1/2 x 300
  • Assembled L x W x H (in.)75.75 x 38 x 48.5
  • Pump Warranty1 yr Consumer / 90 day Commercial
