FIMCO 45 Gallon 3 Point Broadcast Boom
- Item #: 5303245
- Mfg #: 3PT-45-12V-BL
Product Description
The FIMCO 45 Gallon 12 Volt Bolt Together 3 Point Sprayer with Broadcast Nozzles fits Category 1 hitches and is designed to work with small to mid-size farm tractors. The UV resistant, molded polymer tank has a 5-inch tethered lid for easy access and is completely drainable for quick and effective clean out after spraying. This model tractor sprayer features the High Flo High Performance 4.5 GPM, 12 Volt Diaphragm Pump with inline fuse protection. The Deluxe Pistol Grip Spray Wand with brass tip adjusts from a straight stream to a cone spray pattern to quickly adapt to your application needs. Distributes up to 40 feet horizontal spray, 28 feet of vertical spray and comes with 25 feet of 3/8 inch hose. The 3-nozzle stainless steel broadcast boom offers 36 feet of total spray coverage. Each full coverage drip-free Hypro Boom X Tender nozzle sprays independently offering flexibility with precise liquid application. Built on a powder coat painted bolted steel frame to provide strength and support to the tank and boom while connecting to the 3-point hitch on a tractor. The best tractor sprayer for controlling weeds, insects and diseases on farms, parks, acreages, food plots and pastures.
Product Features
- 4.5 GPM High Flo High Performance Pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
- 5 inch fill lid
- Category 1 - 3 point hitch
- Deluxe pistol grip spray wand delivers up to 40 feet of horizontal spray and 28 feet of vertical spray and features an ergonomic polymer handle and precision brass tip
- FIMCO exclusive manifold provides easy pressure adjustment and puts control at your fingertips
- Fuse protected 8 foot lead wire
- Made for these types of applications: weed control, pest control, fungus control, fertilizing

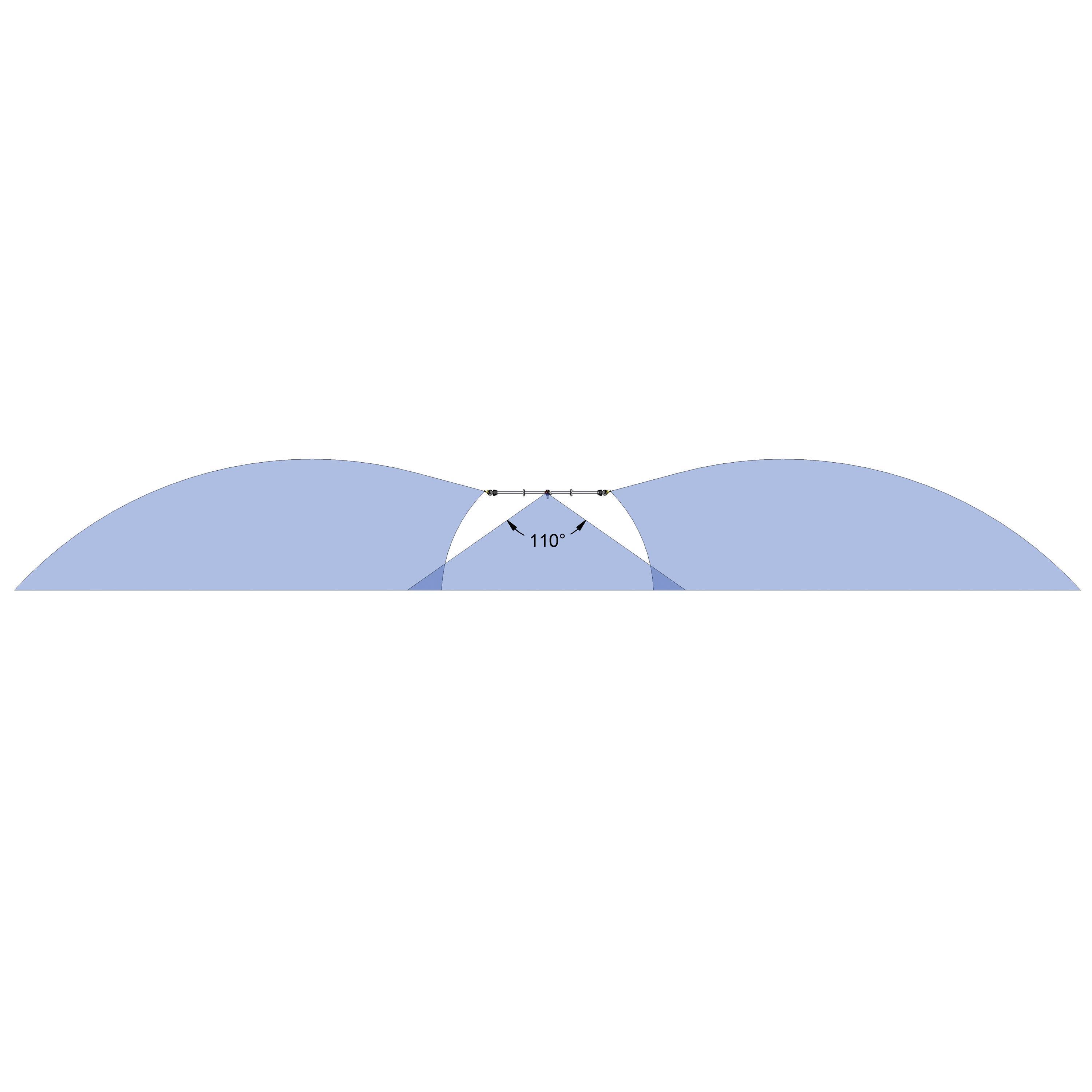

- Stainless steel 3 nozzle wetboom with broadcast tips delivers 36 feet of total spray coverage with Hypro tips that can be turned on and off independently
Product Specs
- Manufacturers Warranty1 yr Consumer / 90 day Commercial
- Tank Size (Gal)45
- Flow (GPM)4.5
- Pressure (PSI)60
- Spray Wand TypeDeluxe Pistol Grip Spray Wand
- Spray PatternAdjustable Pattern Tip
- Pump TypeHIGH FLO
- Spray Height (ft.)28
- Horizontal Spray Distance (ft.)40
- Power Supply12V
- Hose (in. x ft.)3/8 x 25
- Boom Spray Coverage (ft.)36
- Drain Port (in.)3/4
- Pump Warranty2 yr Consumer / 90 day Commercial
